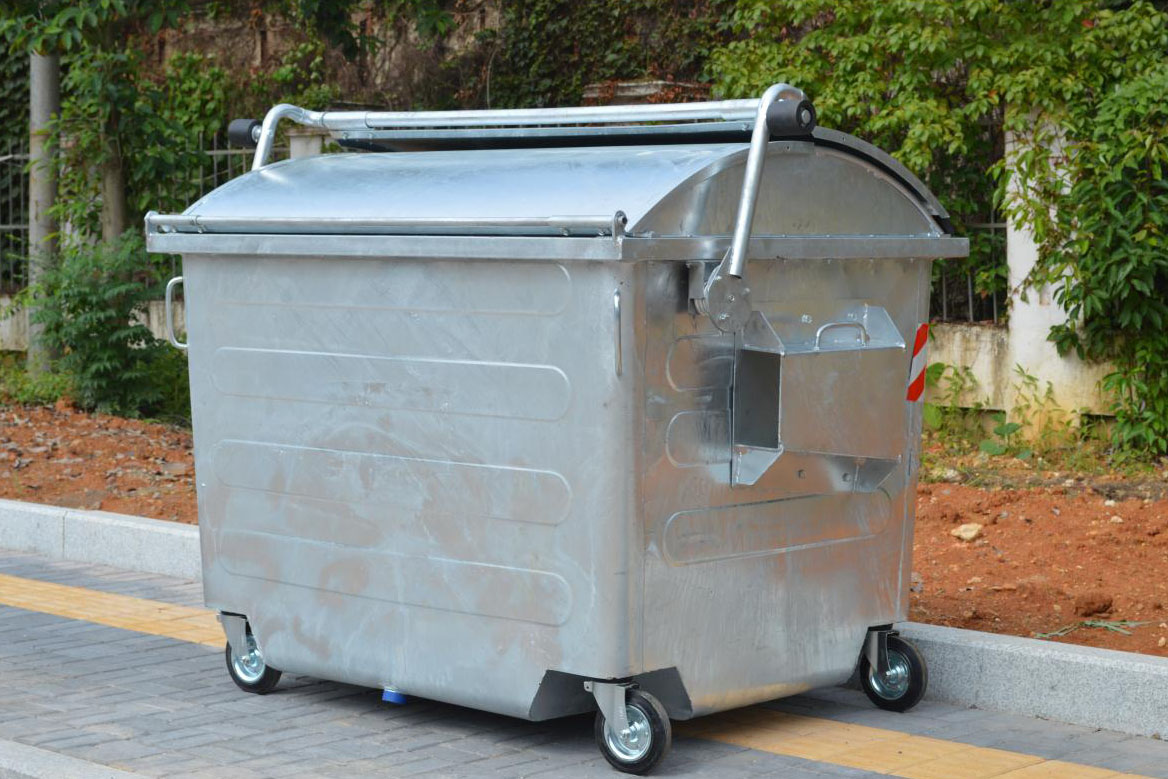

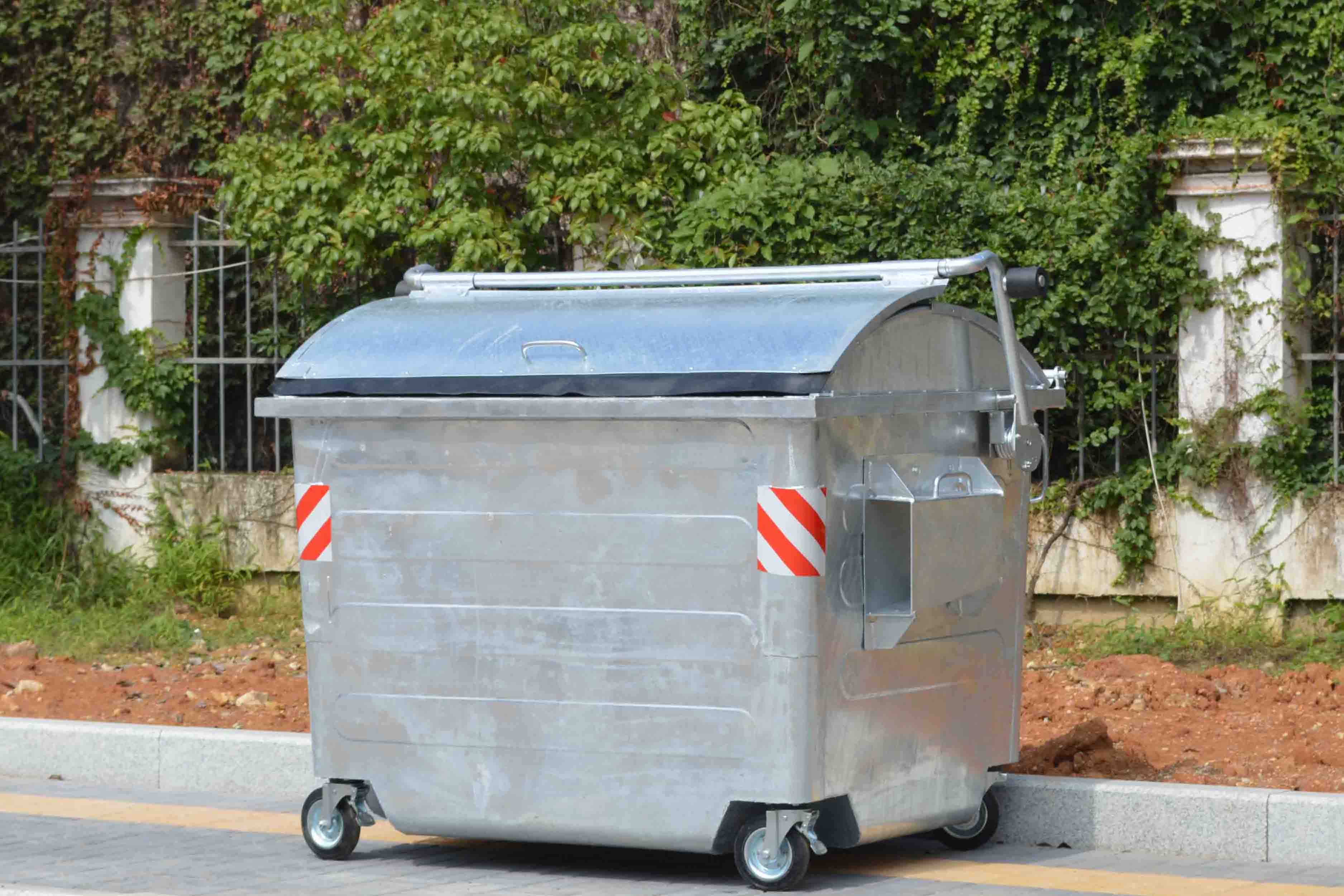

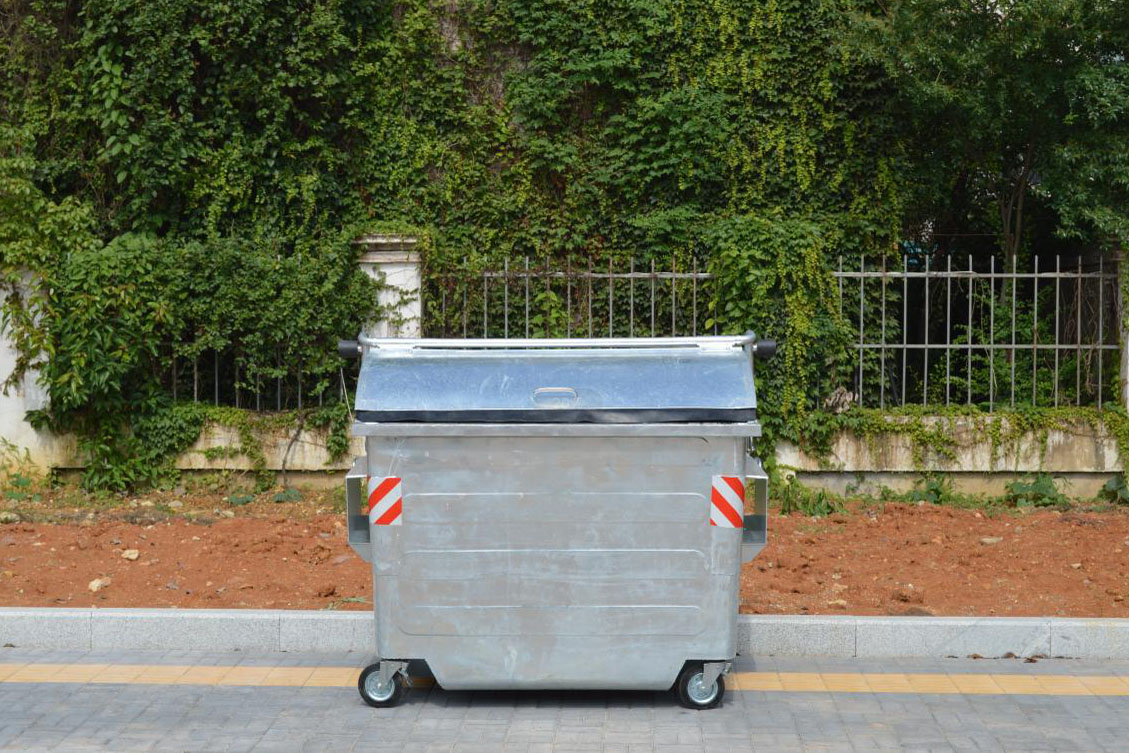

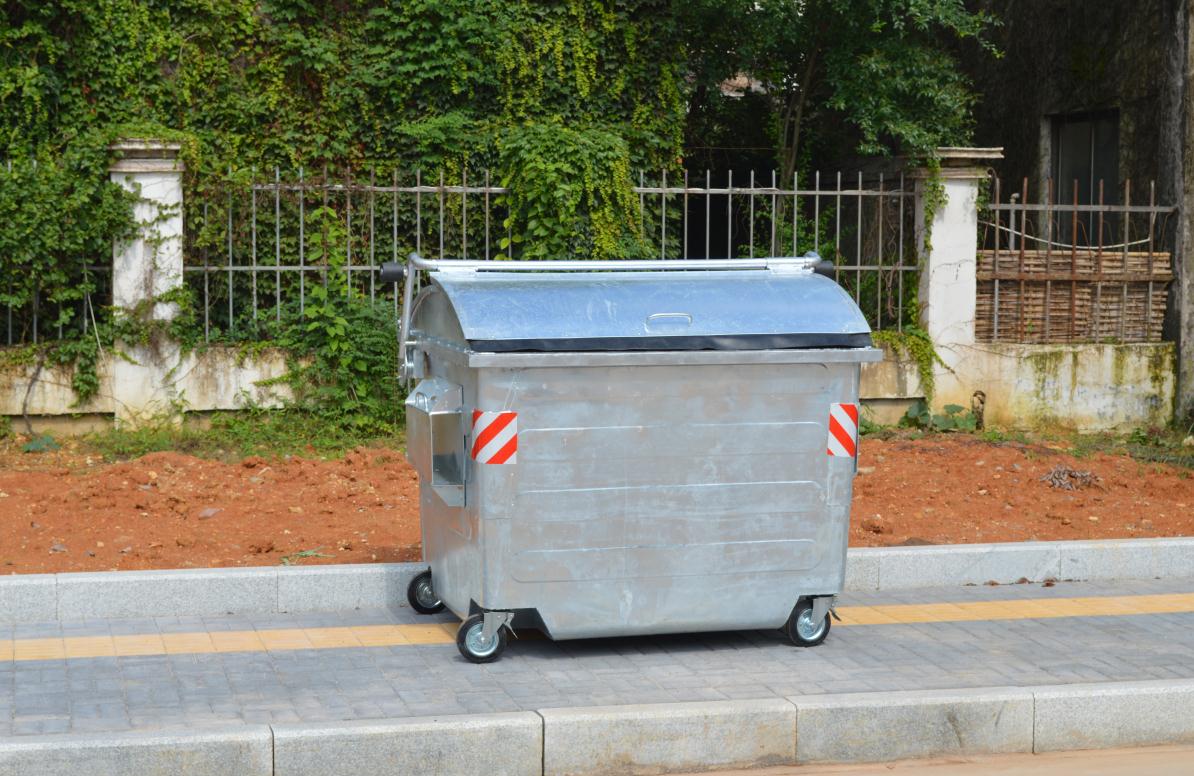

2500L Hot Dip Galvanization Steel Outdoor Waste Bins

Material:steel
Technology:Hot Dip Galvanization
Body thickness:1.5mm
Weight:248kg± 5%
Size:2058mm*1370mm*1562mm

Quantity:
  • PG-2500L
  • PG&GP

introduction

Certificate

(1.1) M3± 5% suitable for waste manufactured according to EN-840-3

Material

Black steel

Technology

Hot Dip Galvanization according ISO1461

Empty weight

230kg± 5%

Body Thickness

1.5 mm

Wheel base thickness

 4.00 mm

Tolerance

± 0.3 mm

Lids

at the front spring released steel dome lid

Warranty

one year on the container and five years for corrosion resistant

Wheels

- at the front 2 swivel wheels Ø 200mm, with brakes, ball bearing, vulcanized wheel centers

- at the back 2 swivel wheels Ø 200mm, ball bearing, vulcanized wheel centers

Specifications

- front-, rear and side walls stably embossed

- on top all-round strengthened frame

- drainage plug at the bottom with bayonet joint

- container frame consist of square profile steel, external/internal continuously welded seams

 - 4 wheel cases welded on the bottom and side walls

Lifting pockets: - pocket length 500mm

- at the back spring released steel hinged lid hot dip galvanized

- lid rocker hot dip galvanized, Ø 48/4mm

- at both sides 2 pulling handles at the lifting pockets and the side wall

 Our containers can be maintained with skid loading plugs and coupling
