City Underground Trash Container Waste Collection Management System

Production Capacity:15000L/H

Lifting stroke:1700 mm

Lifting time:25s

Fall time:20s

Hydraulic working pressure:16MPa

Power:11KW

Net size (L*W*H):4200*1700*2500 mm

Lifting ability:4000Kg

Availability:
Quantity:
  • PG&GP

Serial number

Name

Description

Quantity

1

Lifting system

Hydraulic lifting device

1 Set

2

Sewage system

Diversion + automatic blowdown

1 Set

3

Control cabinet

Hydraulic power unit + electrical control system

1 Set

4

Feeder

Standard foot pedal type, hand type (optional)

Depend on number of Bin

5

240L/660L standard trash can

Standard configuration (quantity optional)

Depend on number of Bin

6

Foundation pit steel guard

Optional

1 Set

7

Full box alarm

Optional

1 Set

8

Fire extinguishing device

Optional

1 Set

9

Deodorizing and killing device

Optional

1 Set

10

Life detection system

Optional

1 Set

11

IC card swiping device

Optional

1 Set

12

Face recognition device

Optional

1 Set


Product overview:

The core technology of the intelligent underground waste container system originates from Europe. It adopts a comprehensive intelligent system and is equipped with 1-4 240L/660L/1100L international standard waste bin according to customer needs. It can realize the front-end waste sorting and placement, sorting and transportation, matched with the current international waste sorting policy. The system has functions such as full tank alarm, automatic closing of the feeding port, automatic drainage, and intelligent fire extinguishing. The feeder is placed above the ground, with a European industrial design, the overall appearance is beautiful, and the surroundings are clean. There are trash cans and hydraulic lifting platforms under the ground. The good sealing performance solves many "neighboring effect" problems caused by garbage exposure, such as breeding of mosquitoes and flies, crossflow of sewage, and odor disturbing people. It can be widely used in parks, pedestrian streets, and squares. , Government agencies, schools, residential communities, etc. A hydraulic lifting platform is set in the underground pit, and the trash can is placed on the platform. The platform drives the up and down of the underground bin. Only the garbage dispenser or the feeding cover is displayed on the ground. The thrown garbage goes directly into the lower trash can.

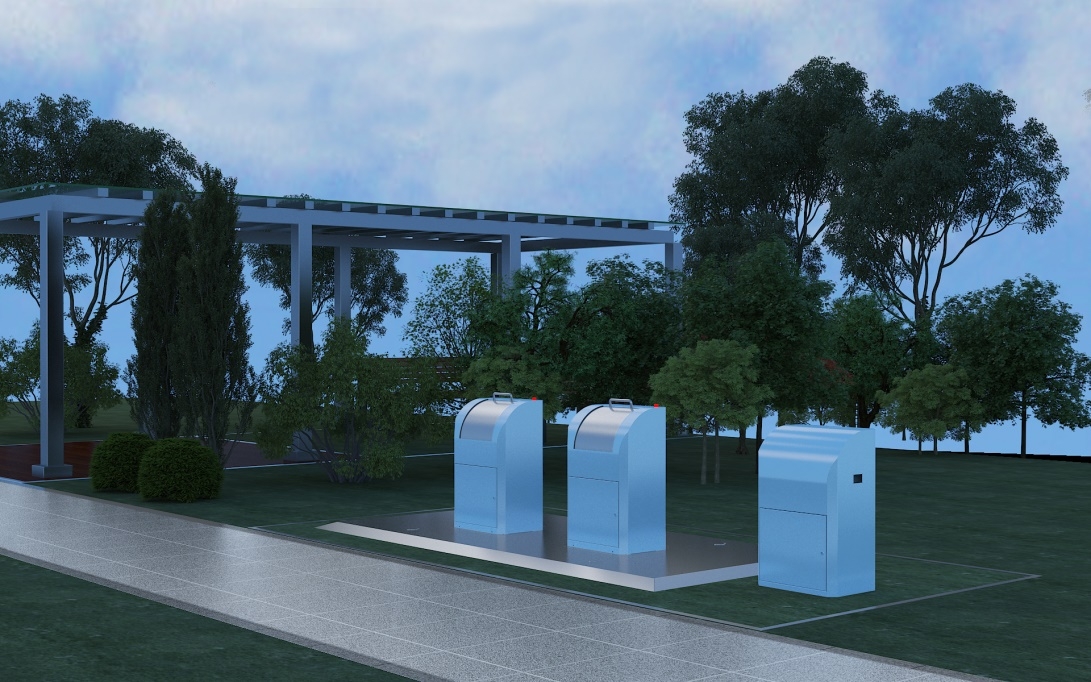

After the platform drops (normal state) schematic diagram


After the platform drops (normal state) schematic diagram


After the platform drops (normal state) schematic diagram


container 1100 liters galvanized

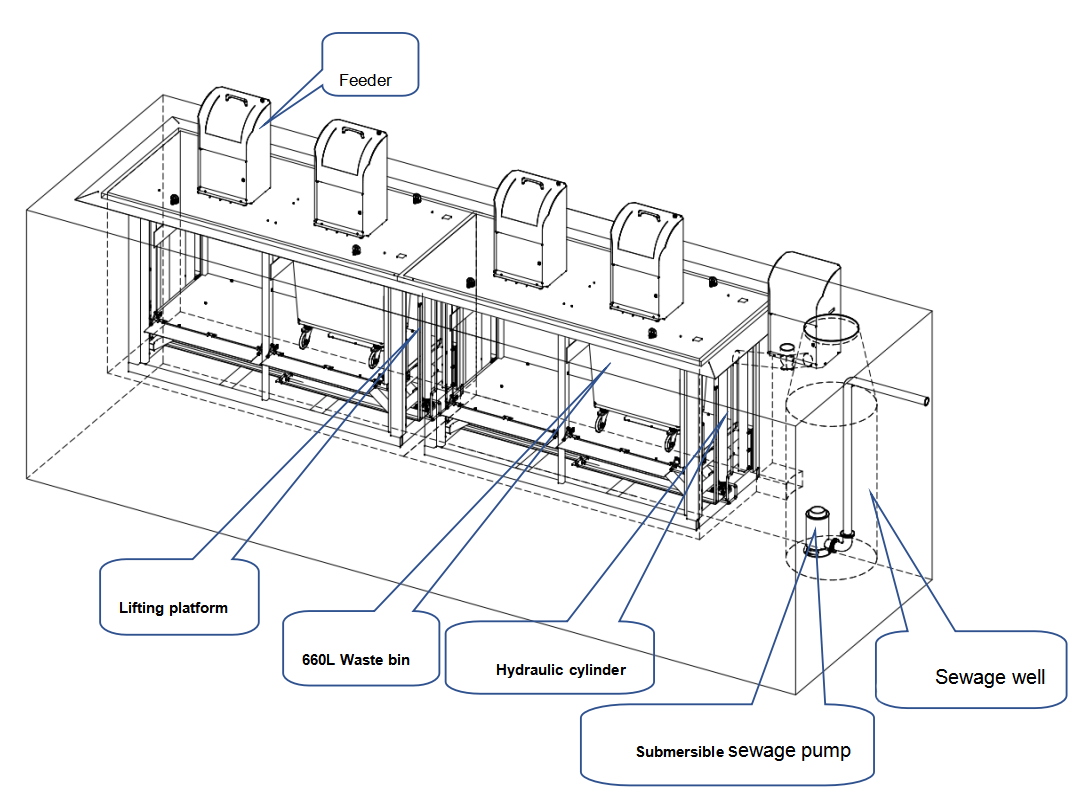

Perspective view of the internal structure layout of the underground waste container


Face recognition devicetrash can

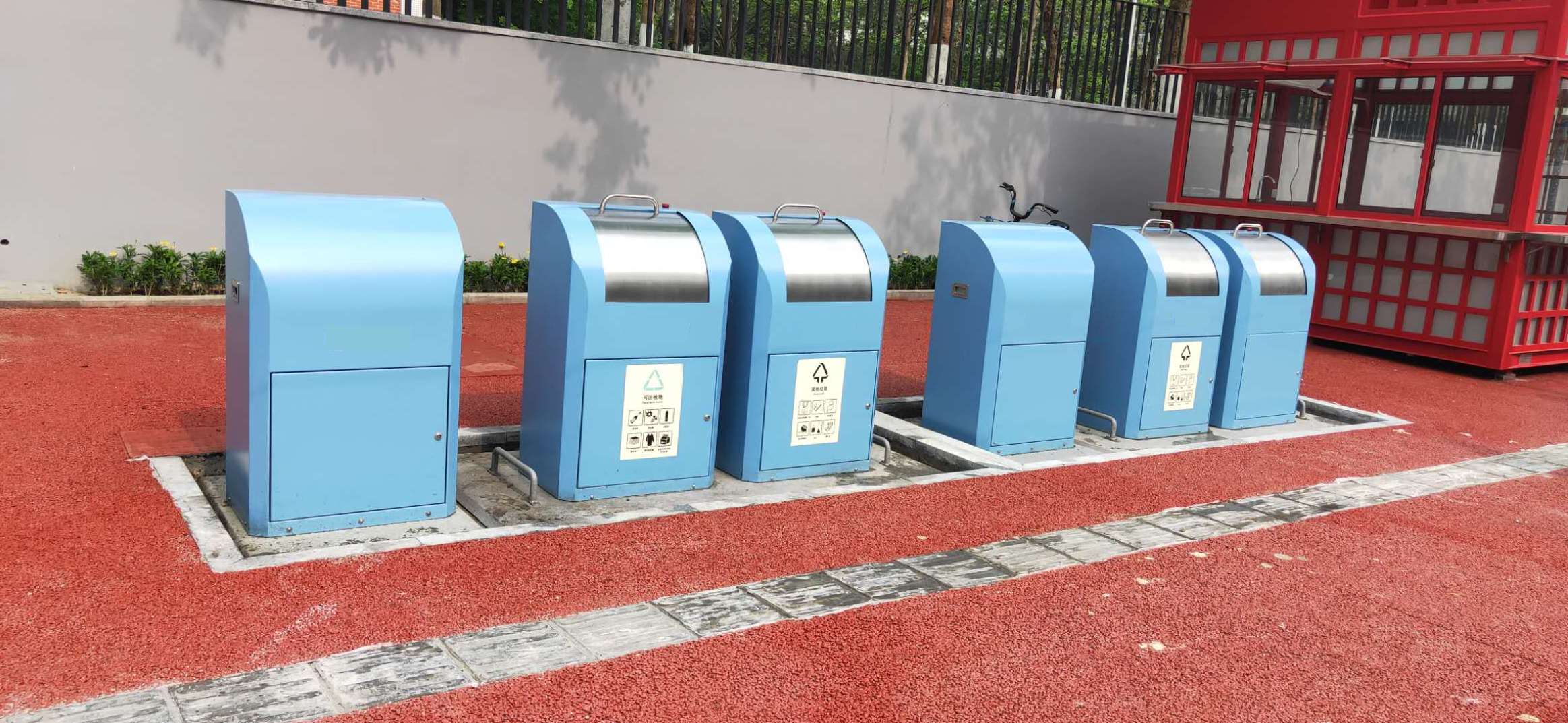

The picture below shows the actual photos of 2 categories


Fire extinguishing device waste bin


The main components of Underground Waste Container:

240/660/1100L Underground Waste container are mainly composed of: Lifting platform, Feeder (manual, pedal, card reader, etc.), Control cabinet, Lifting hydraulic system, Electrical system, sewage system, Steel shell guard (optional Installed) and other components.



Design principles and standards for equipment layout:

1) High transfer efficiency, effectively reducing the number of waste transfers, energy saving and emission reduction; 2) Strong applicability and can be used in conjunction with most of the existing collection systems; 3) Strong environmental protection capabilities, and no secondary pollution to the surrounding area of the transfer station; 4) The effect of landscaping is good, so that the underground station can be effectively coordinated with the surrounding city appearance and environment; 5) The area is small, the land utilization rate is high, no permanent ground buildings are produced, and it is convenient for construction; 6) It possesses domestic first-class technological advancement and high degree of automation.



Sewage discharge method:

The sewage discharge method adopts diversion and automatic sewage discharge. When the sewage (mainly rainwater) level reaches the set height, the submersible sewage pump will automatically start to discharge the sewage from the sewage well into the municipal sewage pipe network. (Need to be equipped with a check valve to prevent sewage backflow).



Product features:

1. Suitable for garbage sorting- 2 sorting, 3 sorting, 4 sorting methods can be used to adapt to the current waste sorting, and the buried structure improves the aesthetics of the environment.


2. More reliable-using hydraulic drive, the product load is more reliable, and the operation is more stable 3. The trash can container is more flexible-the national standard trash can container can be adapted for collection and transfer with after-loading vehicles and FVC series collection vehicles 4. Easy maintenance-the use of translational sliding structure, easy to maintain
