1100L 1.1CBM galvanized steel bin with plastic flat lid EN840 standard

Views:19     Author:Site Editor     Publish Time: 2019-11-28      Origin:Site

PG&GP: 1100l Galvanised Bin WT Flat Lid

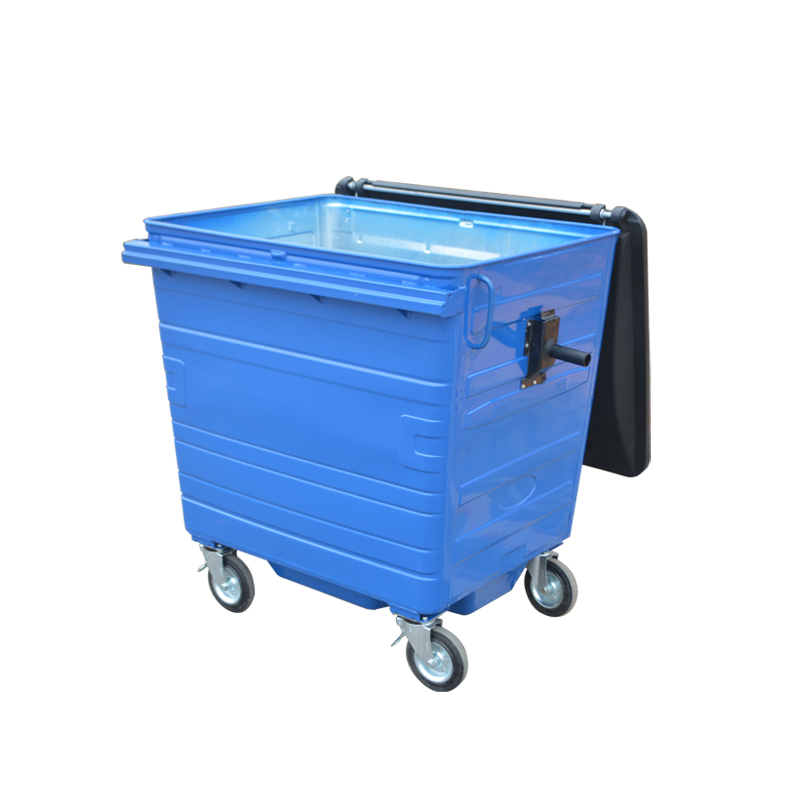

1100LT-21100LT-1


PG&GP: 1100L Taylor Bin

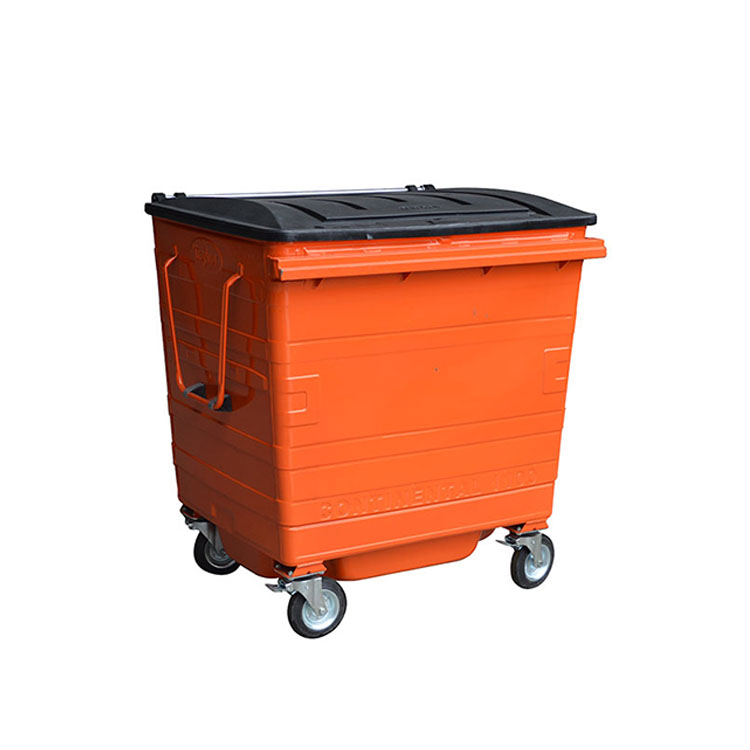

1100L-6 depressed bottom recycle bin1100L-6 depressed bottom waste bin


PG&GP: 1100L Flat Bin Drawing (+-)5%


6


Main Specifications:

Technical Specifications for Metal Waste Container of 1.1 m3 Capacity.

1- (1.1) M3± 5% suitable for waste manufactured  according to EN-840

2- Empty weight: 102± 3% kg

3- The body is steel with hot dip galvanization according to ISO 1461 and lid is plastic(double layer by rotational molding)

4- Wheels: each container has four heavy-duty solid wheels of (200) mm diameter, rotated 360o for easy movement; two of them have foot break.

5- Drainage hole: at the bottom of the container there is drainage and cleaning hole covered by plastic.

6-Wheels

-Solid rubber tires

-.Diameter: 200mm

- Wheel rotation of 360 degrees

-.Wheel breaking devices ( 2 units)

7- Dimension: 1472x 980 x 1372mm Tolerance ± 3%

8-- Container Thickness:

9-The plate used

-Body Thickness 1.5 mm

-Side Holider Thickness 3.00 mm

-Wheel base thickness 4.00 mm

-Tolerance ± 0.3 mm

11. More options for Lifting Devices.

12-Warranty:one year on the container and five years for corrison resistant
